GF-1338NP-12 (ver 1.4)

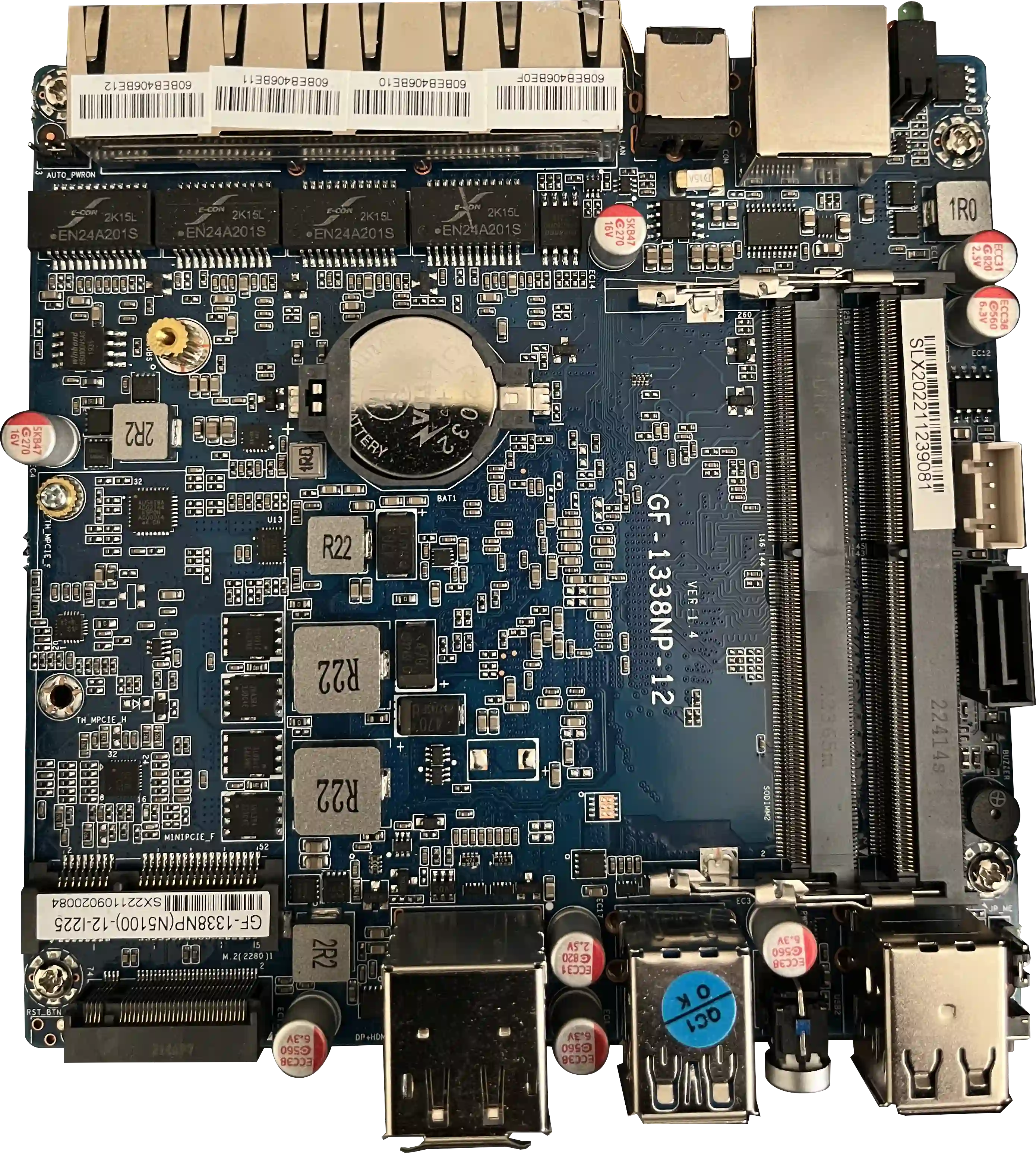

GF-1338NP-12 Circuit Board

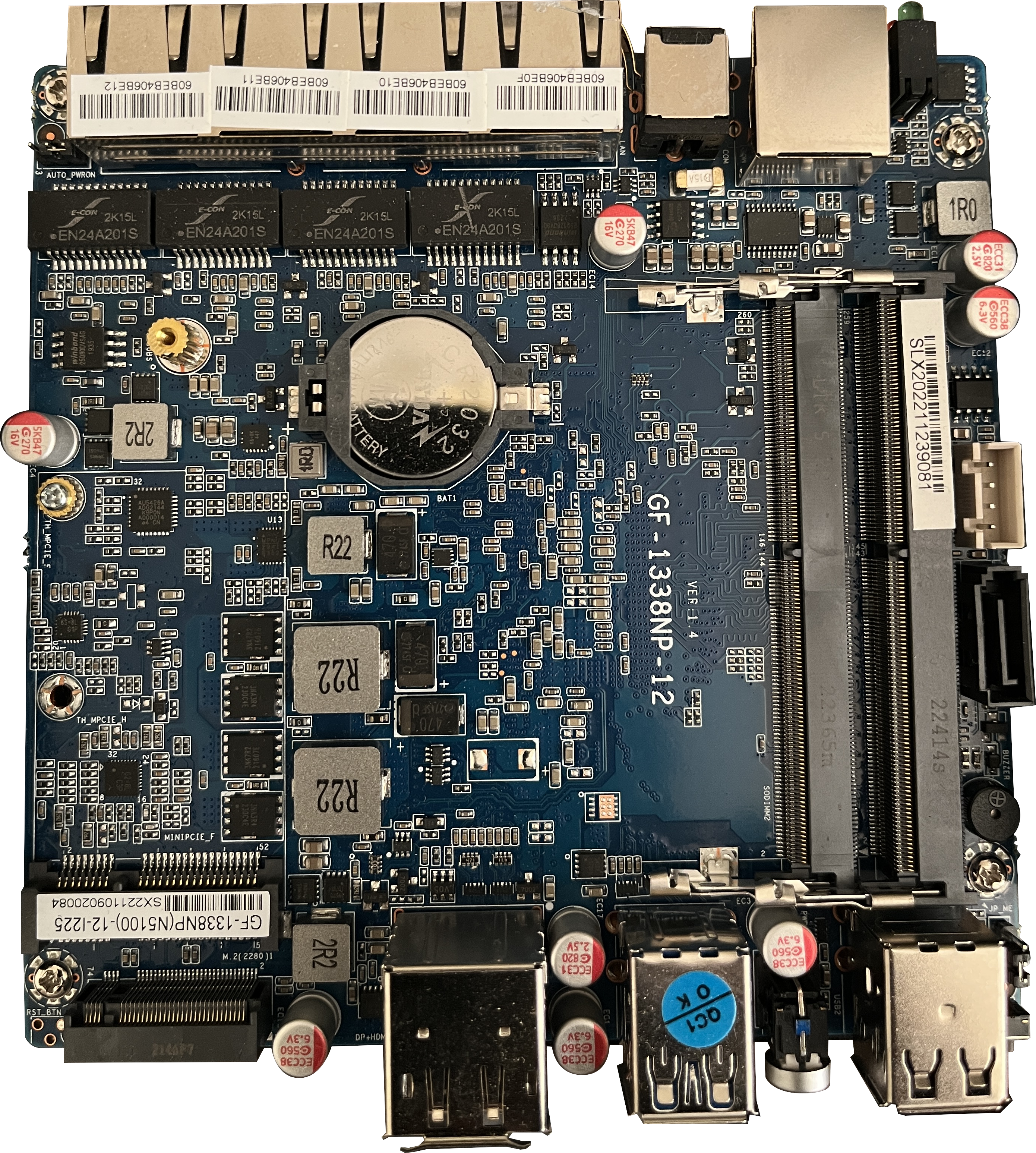

original resolution (png)

The GF-1338NP-12 is a fanless single-board computer that typically has a soldered Intel N-family or J-family processor. The board is manufactured by BKHD, and the only official documentation I can find on it is from their website. It seems that there are multiple versions of the board, with mine being ver 1.4. All three of my boards have the Intel Celeron N5100 CPU. While not visible in the above picture, the CPU is found underneath the motherboard.
